High voltage shunt capacitor transformer compensation device (hereinafter referred to as the device) is mainly used for power frequency 6kV.10kV, 35 kV three-phase power systems, to adjustment, balance network voltage of substation, improve power factor, reduce the loss, improve the quality of power supply. Note 1: said y wiring, B represents the Y-Y connection. Note 2: K said open delta voltage protection, C, said voltage differential protection, l said midline balance current protection. 3:W said outdoor installations, such as not marked for indoor. For example: AK TBB10-4800/100- said device rated voltage 10kV, the rated capacity of the device for 4800kvar, single Taipower container capacity as a 100kvar, Y connection, opening delta voltage protection of indoor type shunt capacitor device.

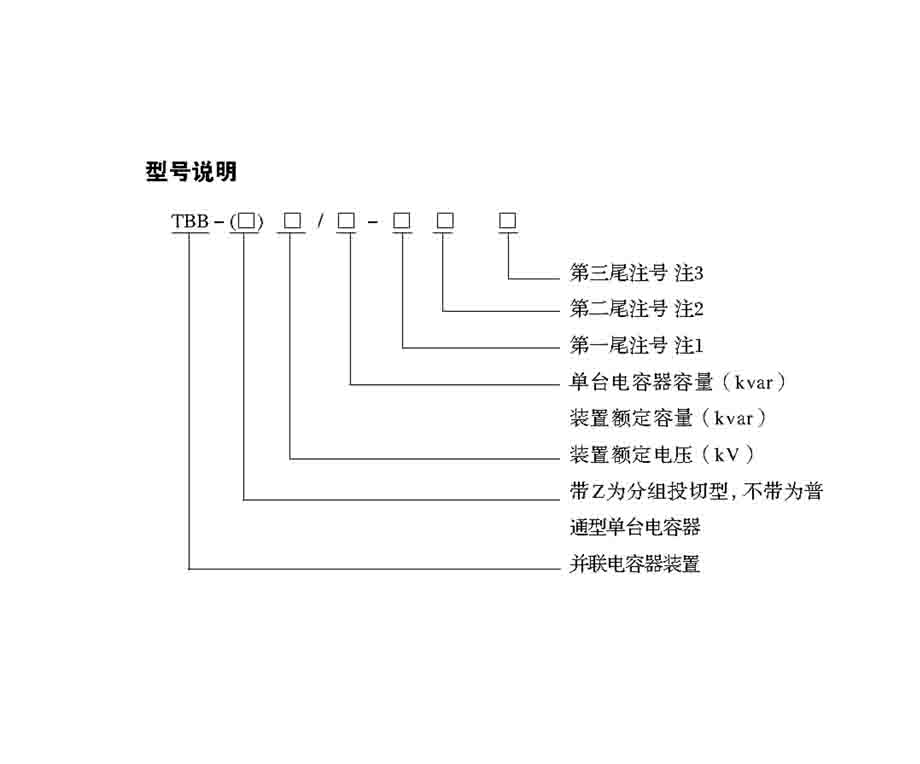

1 model description

2 use environmental conditions

The altitude of the installation and operation area is not more than 2000m.

No violent mechanical vibration, no corrosive gas and steam. No conductive dust explosion.

Installation and operation environment temperature: indoor device can not exceed -5 ~+40 DEG C, the outdoor device can not exceed -40 ~+40 DEG C

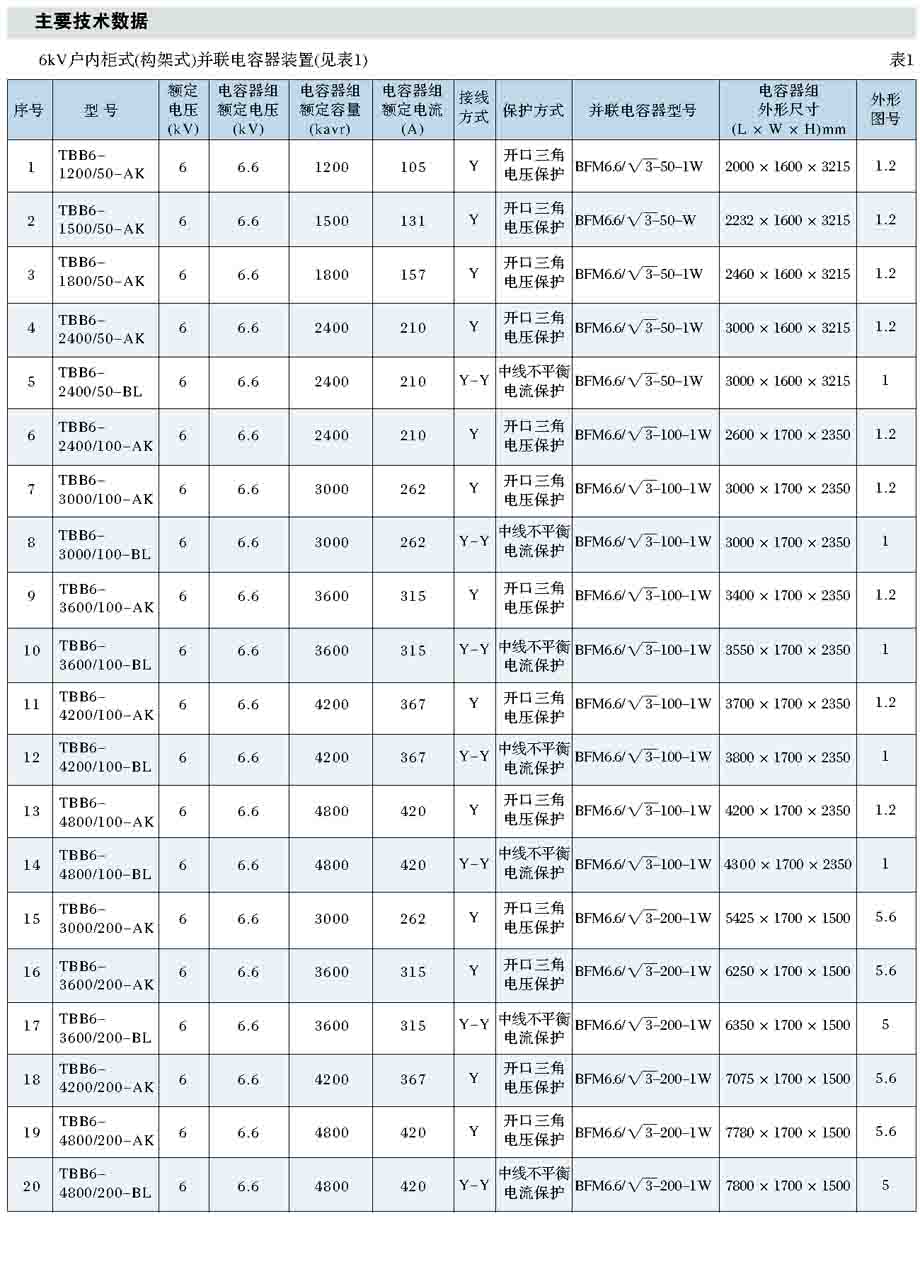

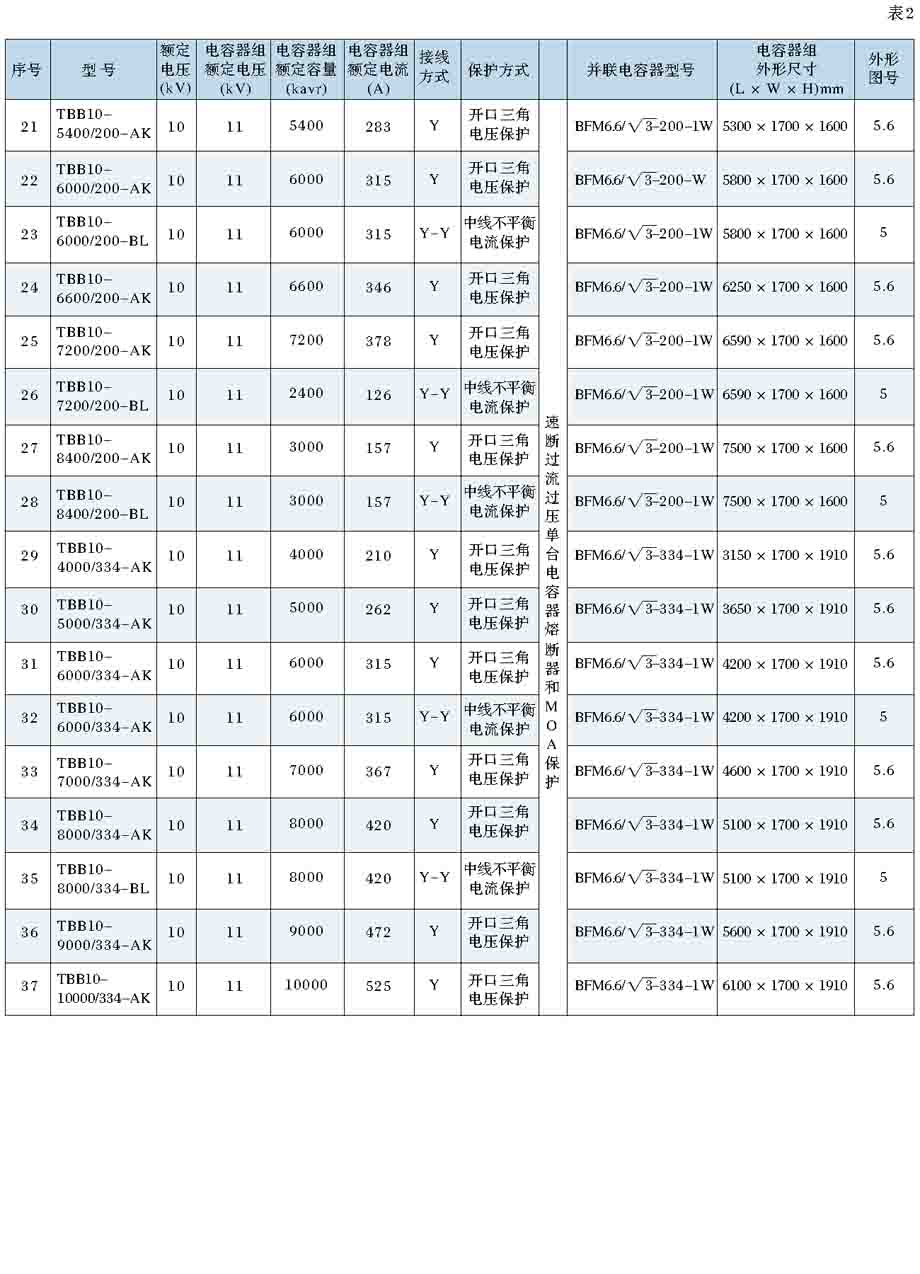

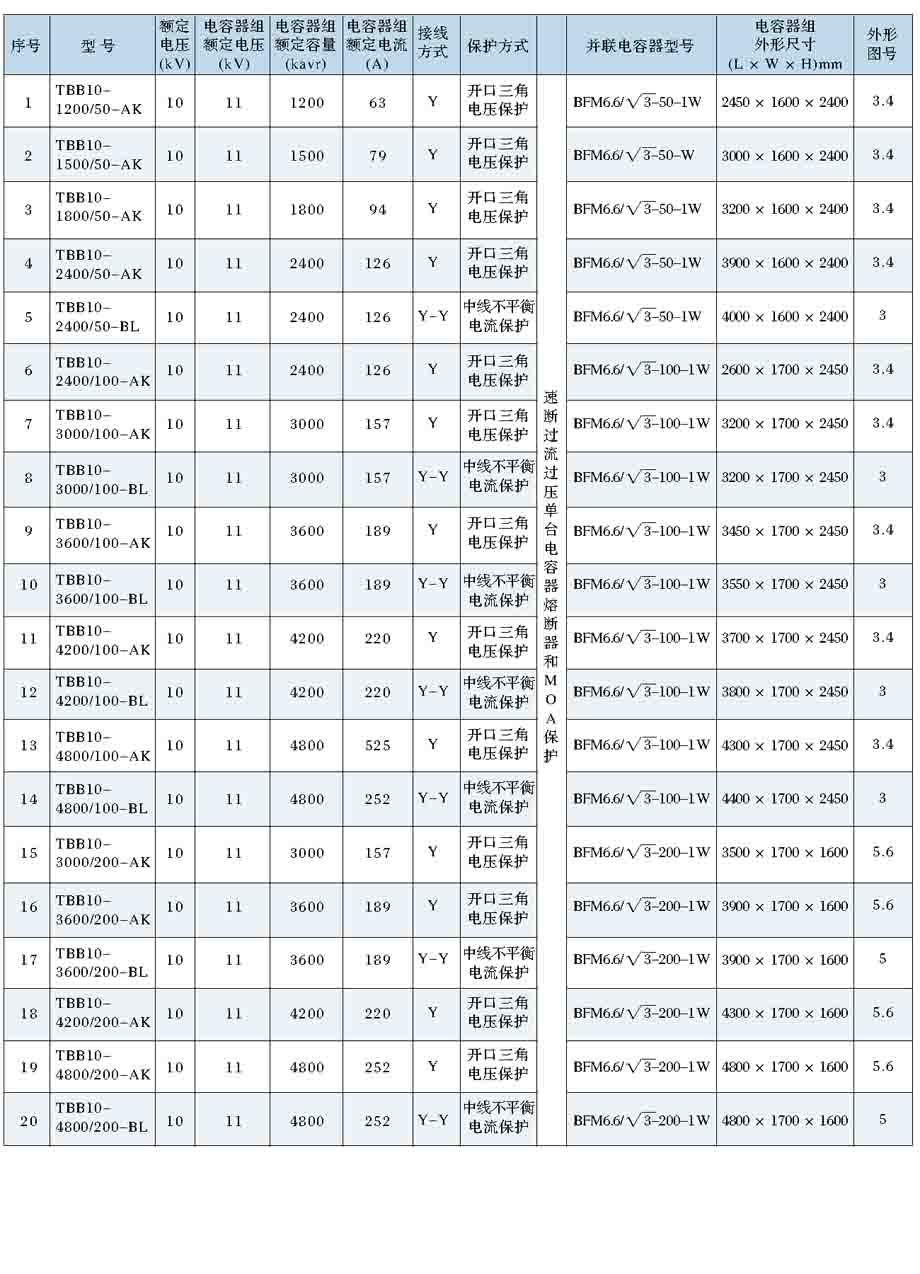

3 main technical data

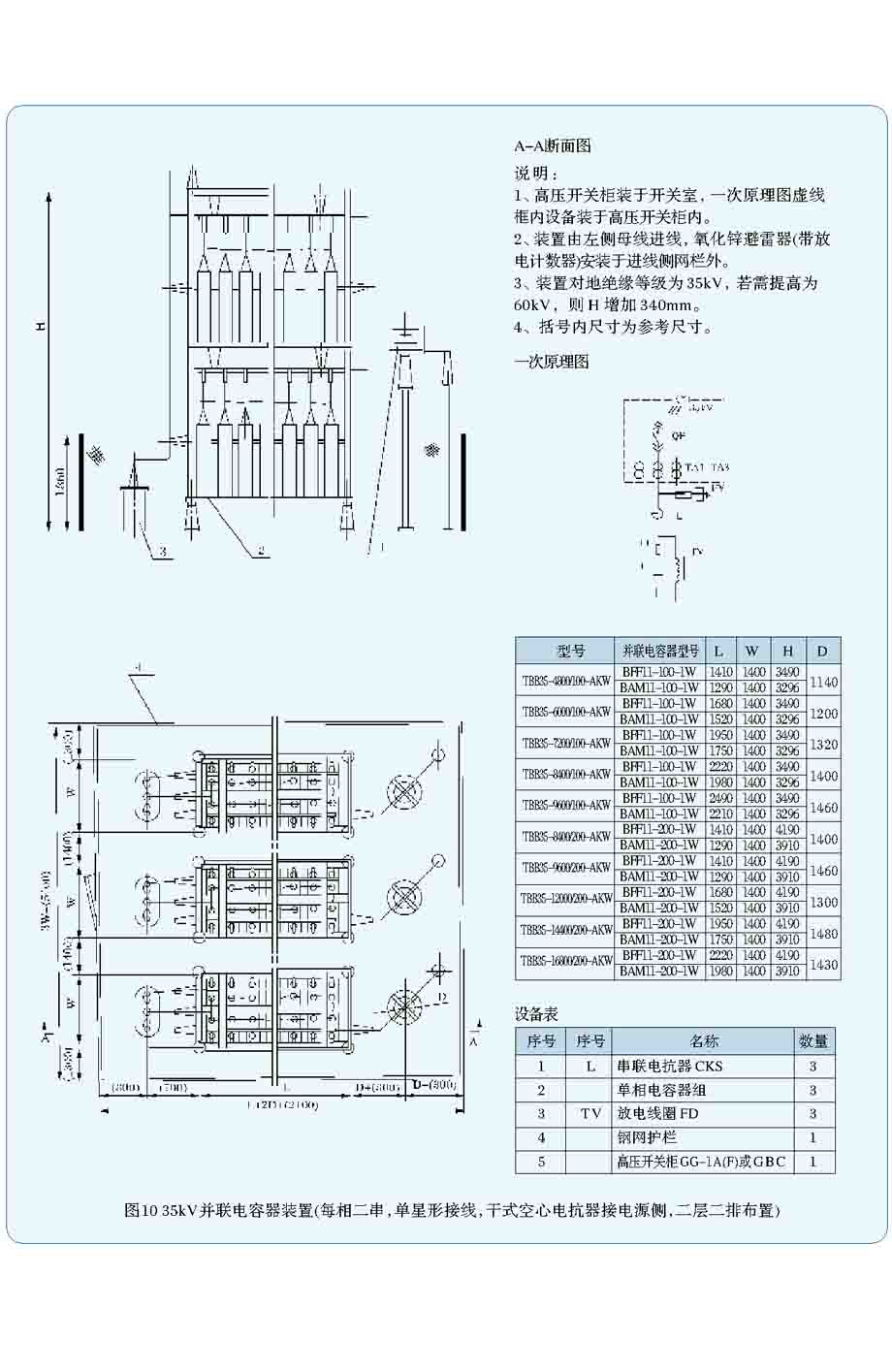

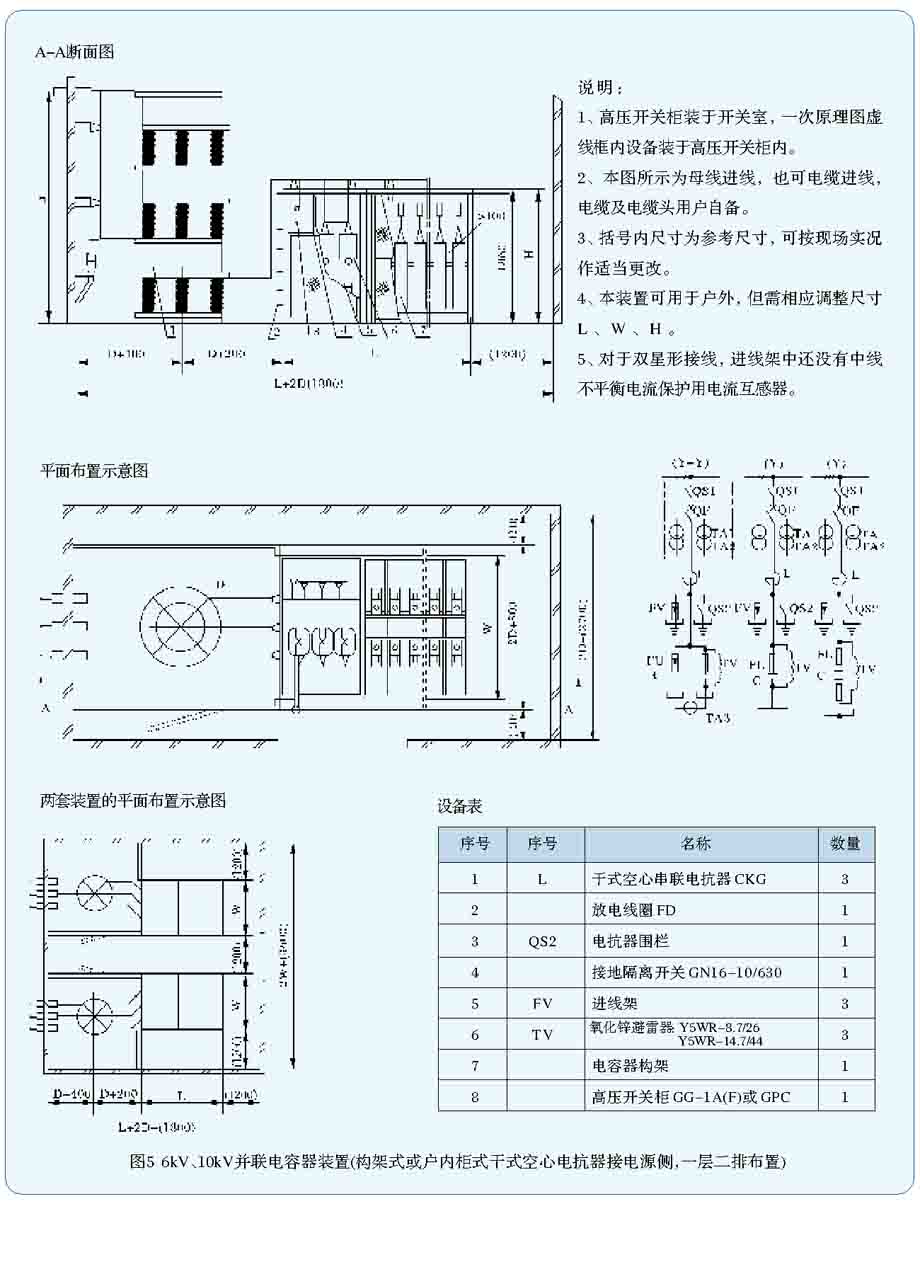

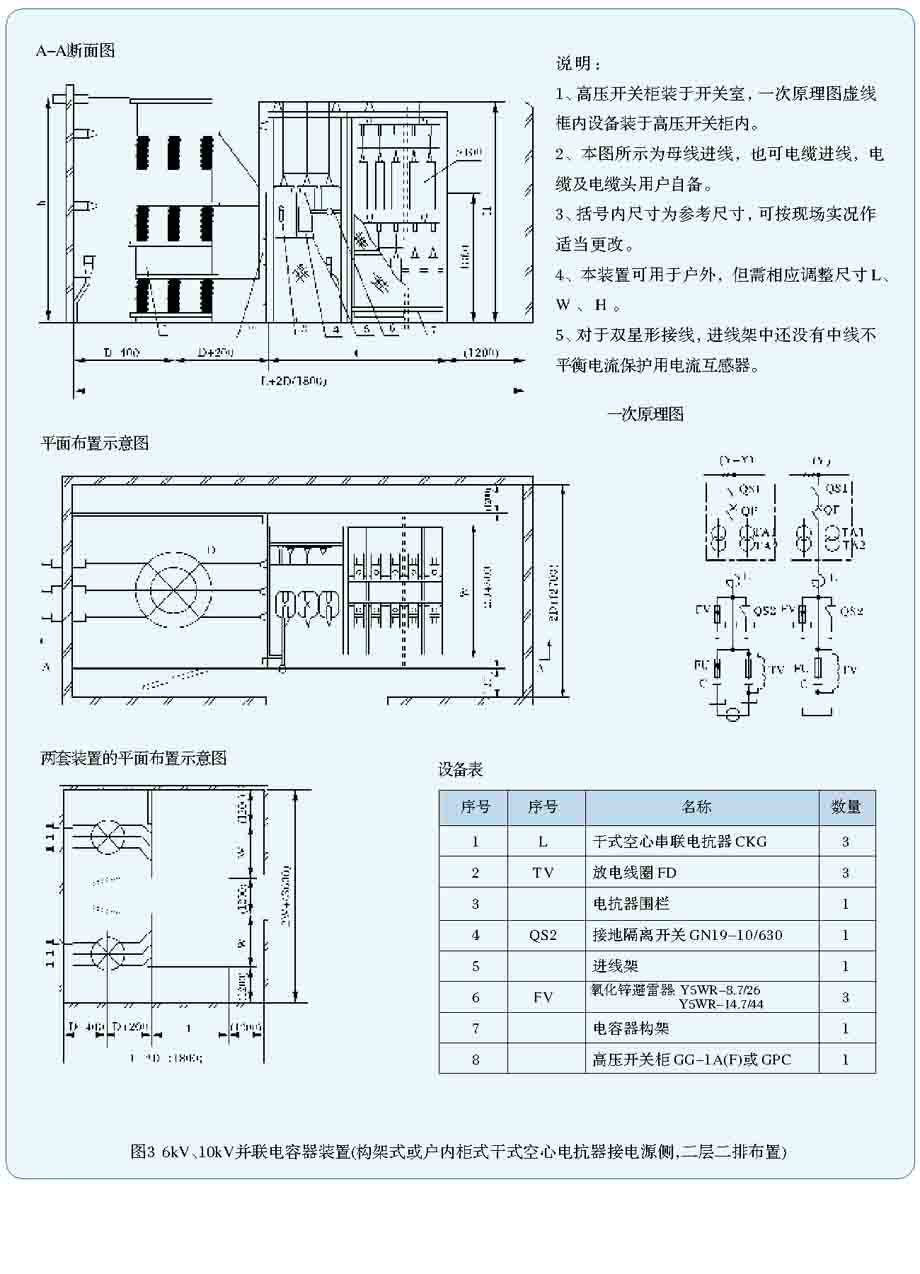

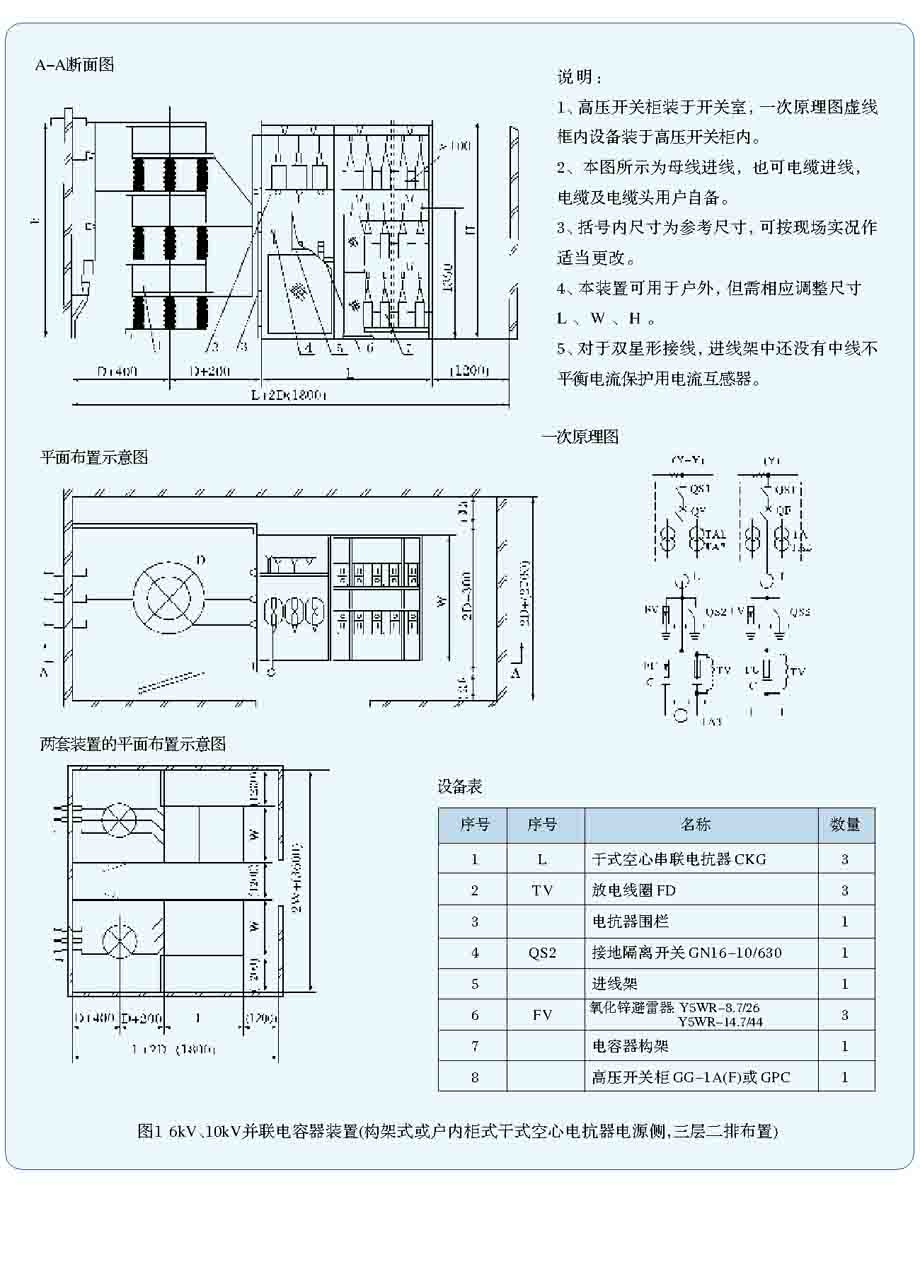

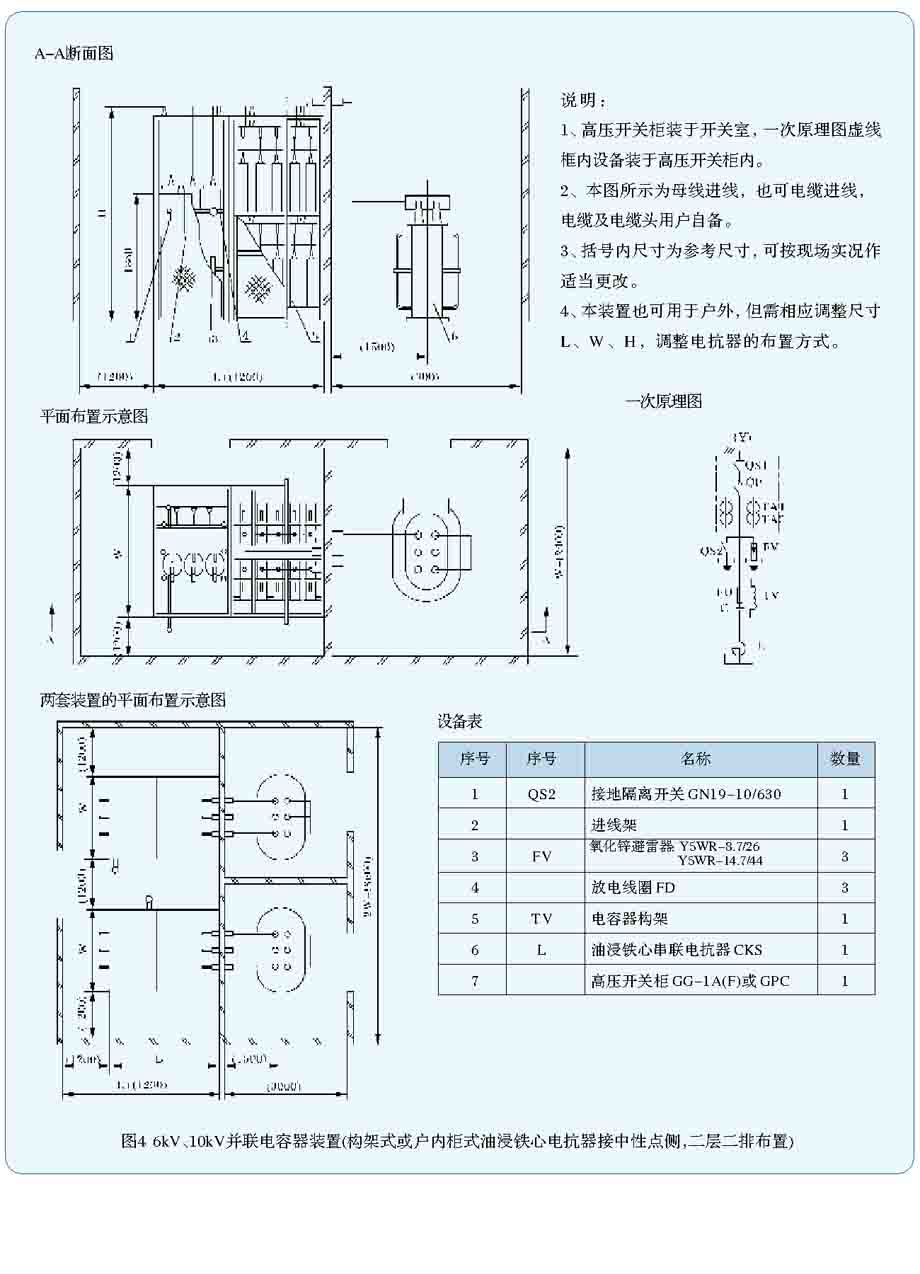

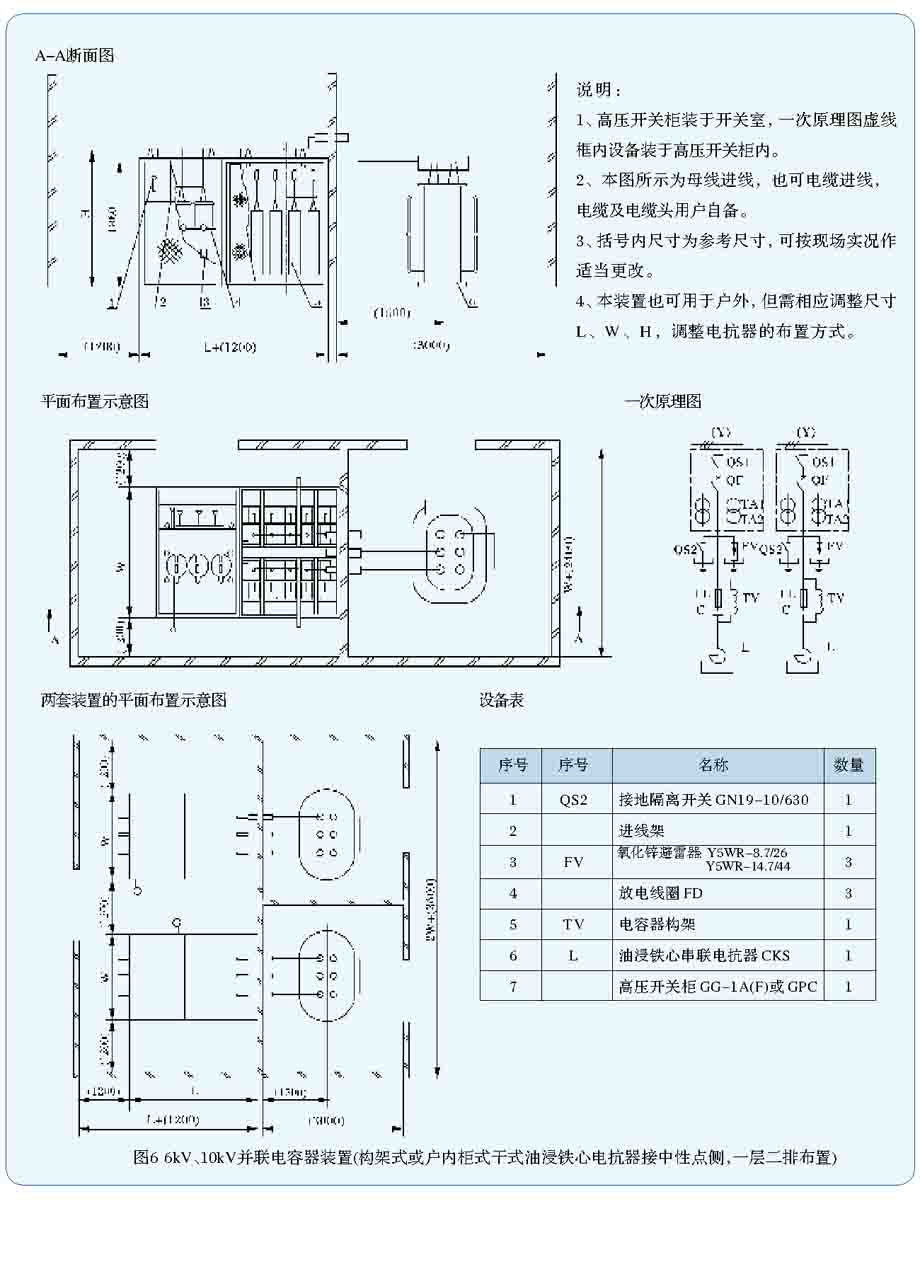

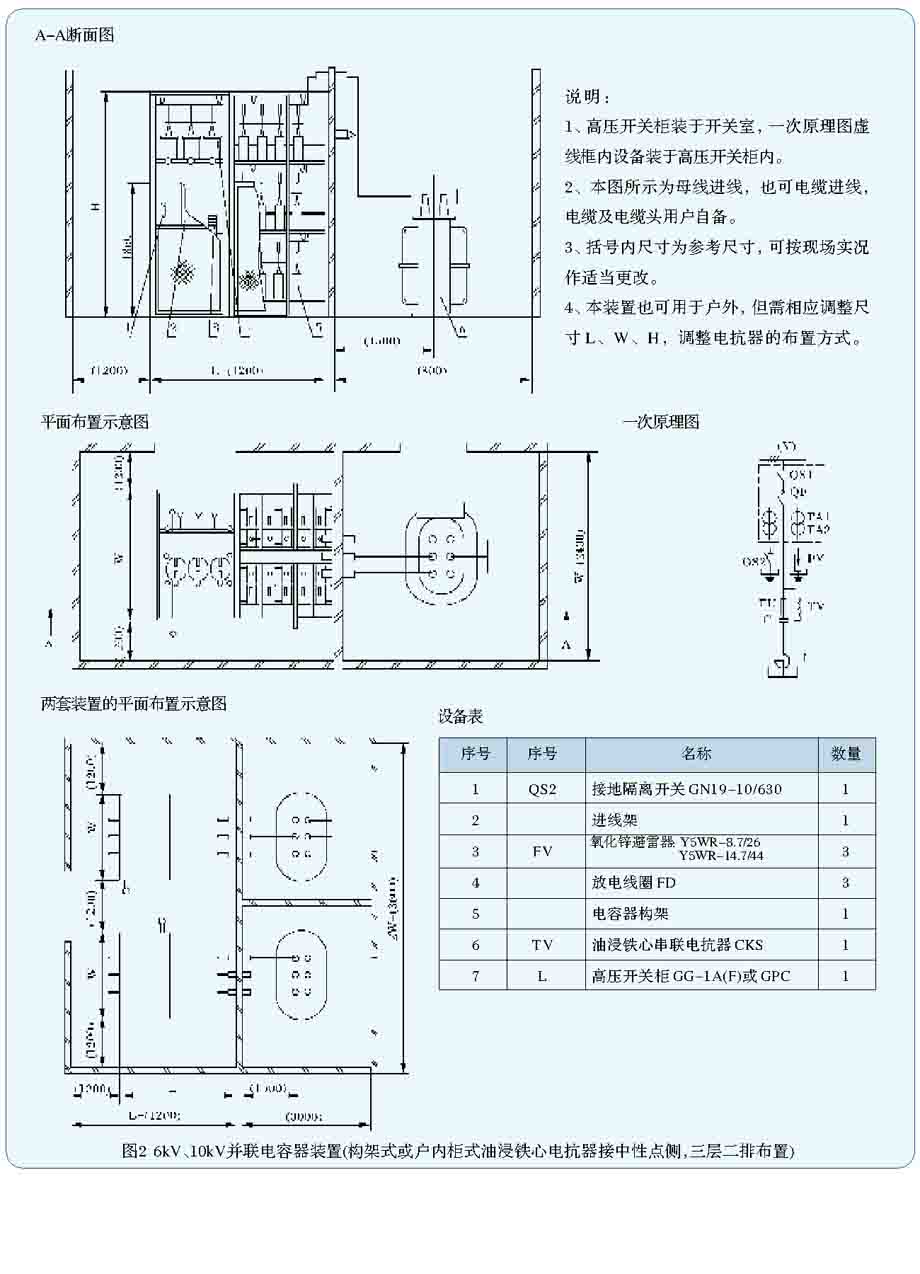

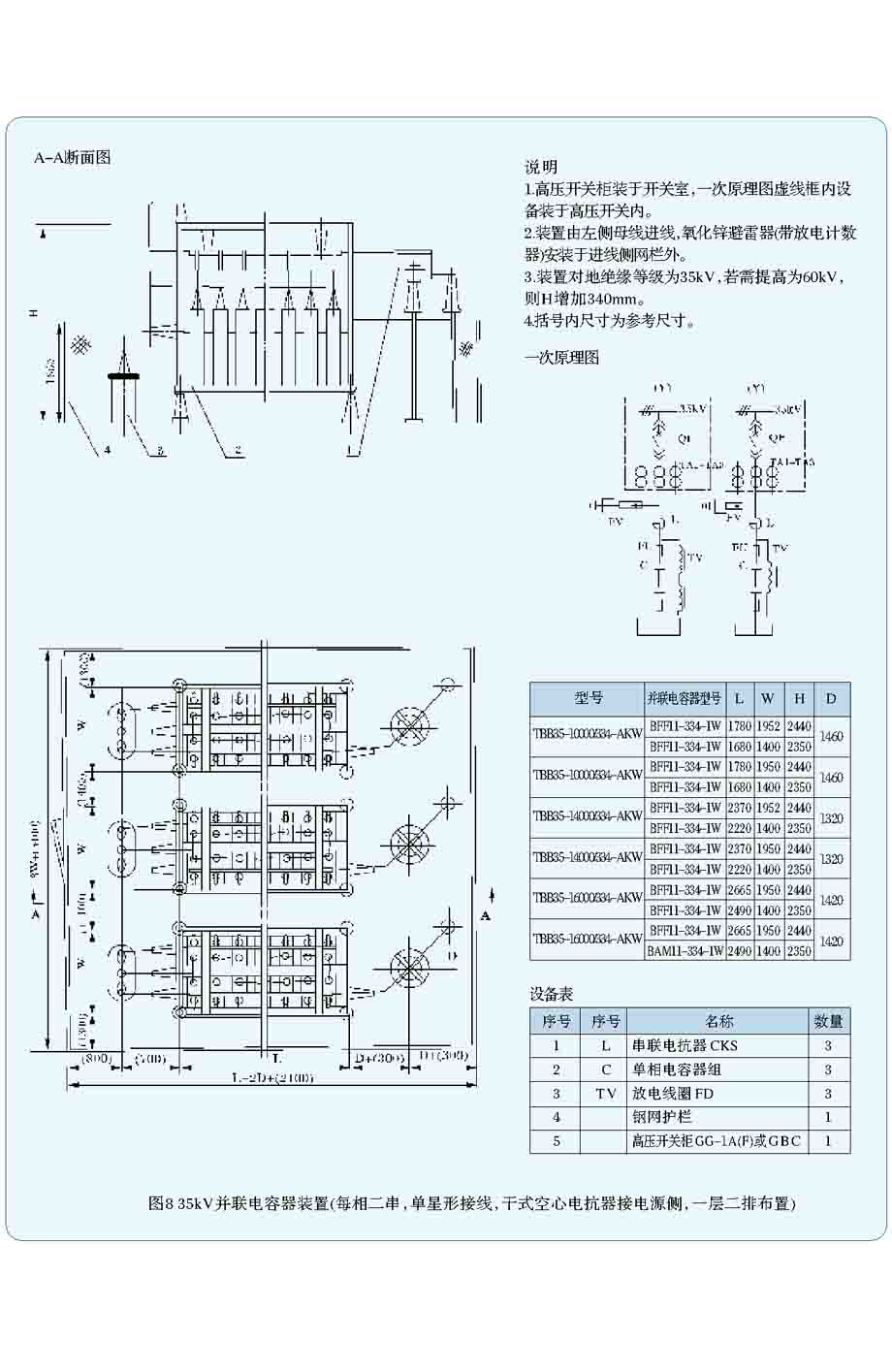

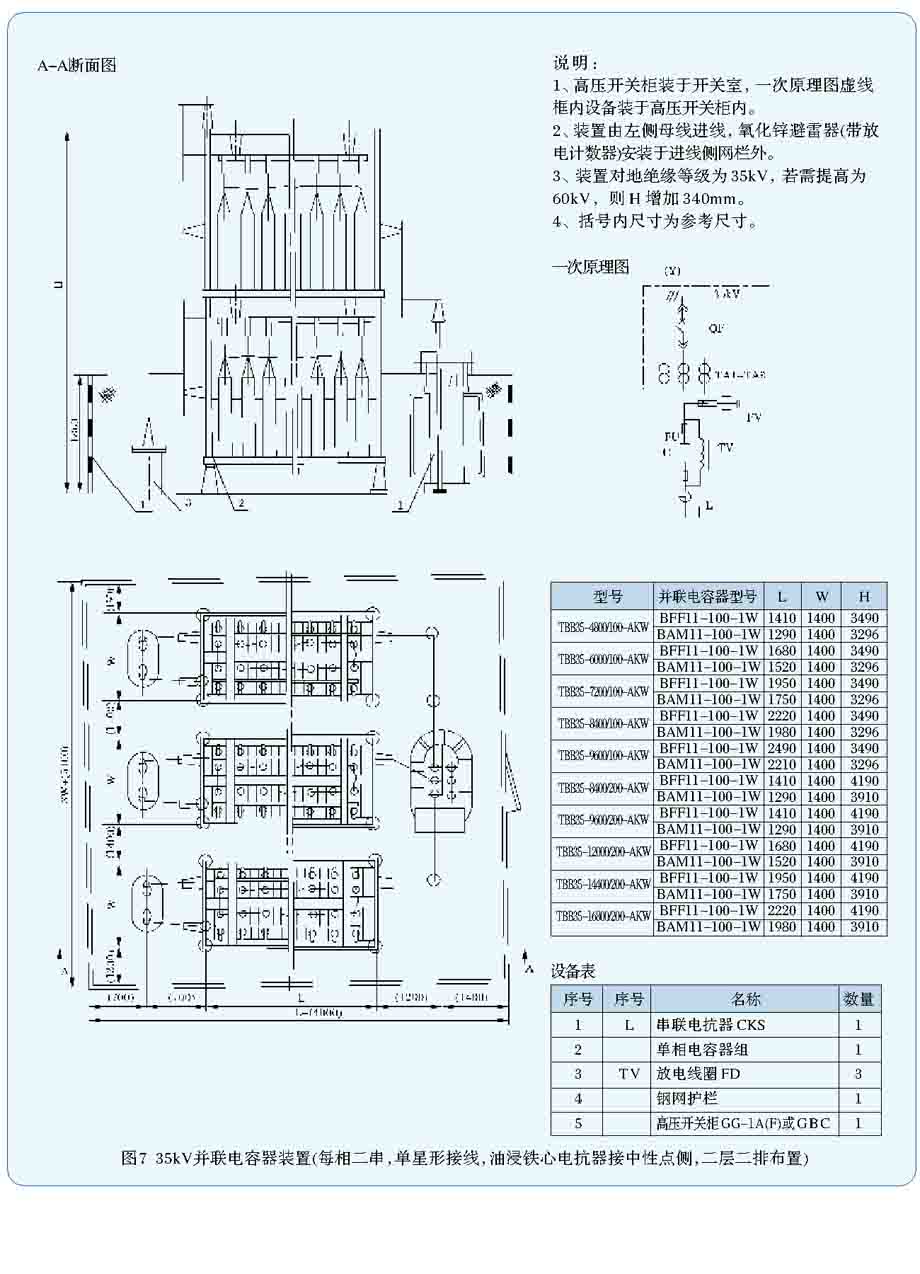

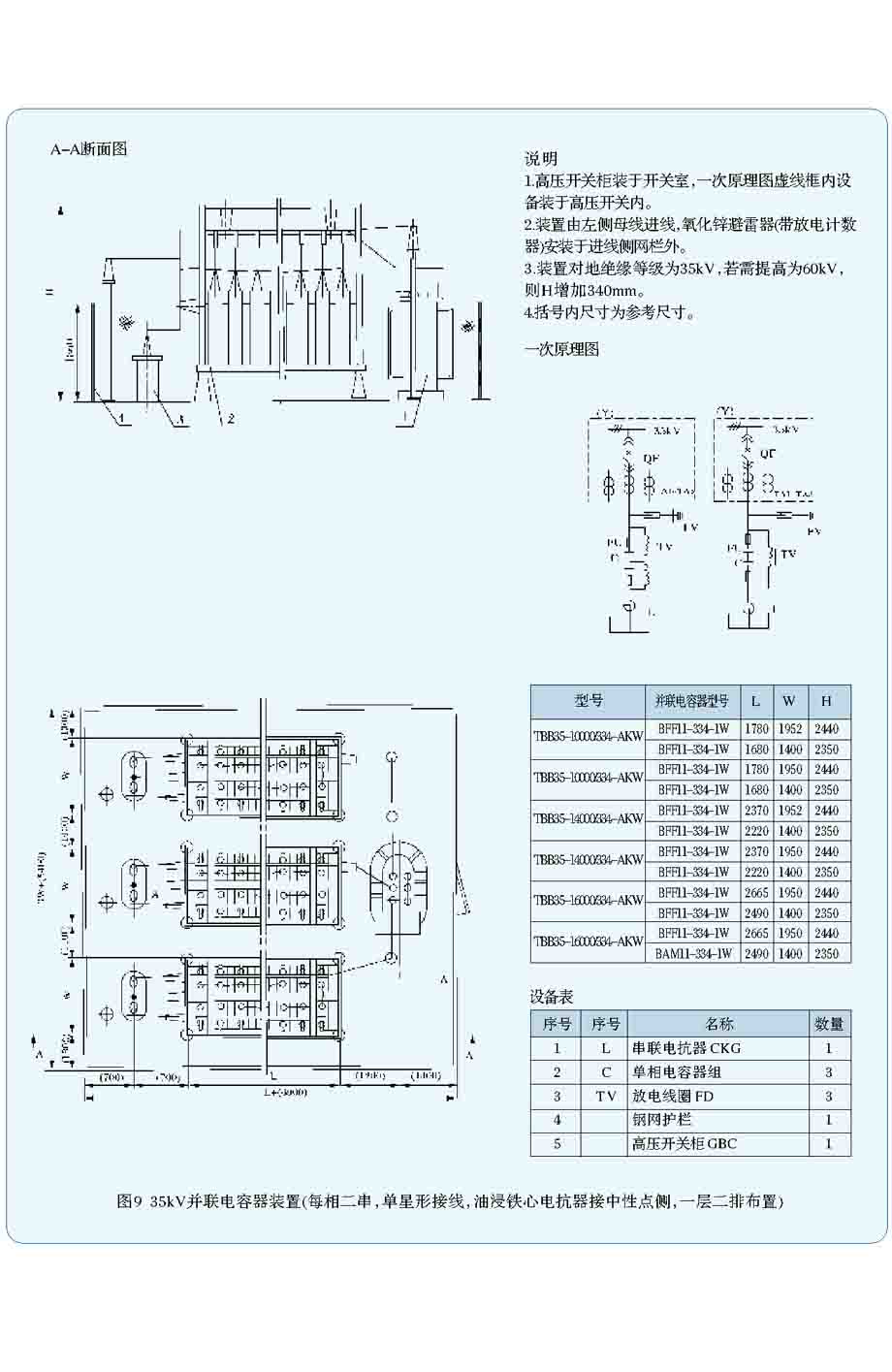

4 section diagram
